Ceramic Fiber Products
• High temperature insulation products ability to 2300 °F (1260 °C)
• Recommended Operating Temperature: 1800 °F (980 °C)

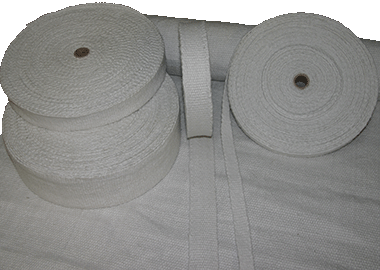

- CG Cloth: Plain Weave with Fiberglass Insert
- CS Cloth: Plain Weave with Fiberglass and Inconel
Wire Insert
1/16'' x 39.4'' x 100'
1/8'' x 39.4'' x 100' - TG Tape: Plain Weave with Fiberglass Insert
- TS Tape: Plain Weave with Fiberglass and Inconel
Wire Insert
Thickness: 1/16'', 1/8''
Width: 1'', 2'', 3'', 4''
Master Roll Length: 100'

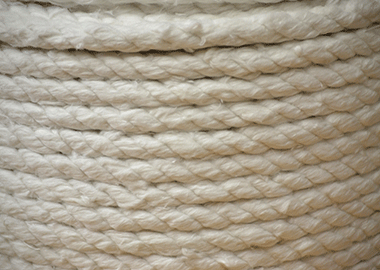

- TR Twisted Rope: 3-Ply Twisted Rope Made from
Ceramic Wicking Sizes: 1/4'', 3/8'', 1/2'', 5/8'', 3/4'',
7/8'', 1'', 1-1/4'', 1-1/2'', 2'', 3''

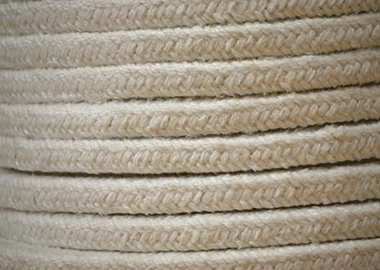

- QG Square Braid Rope: Square Braided Rope with Fiberglass Insert
- QS Square Braid Rope: Square Braided Rope with
Fiberglass and Inconel Wire Insert
Sizes: 1/4'', 3/8'', 1/2'', 5/8'', 3/4'', 7/8'',
1'', 1-1/4'', 1-1/2'', 2'', 3''

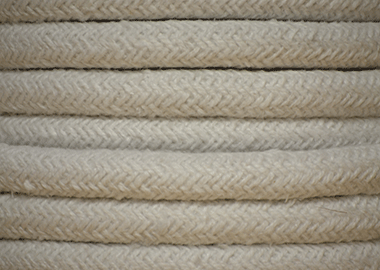

- RG Round Braid Rope: Round Braided Rope with Fiberglass Insert
- RS Round Braid Rope: Round Braided Rope with
Fiberglass and Inconel Wire Insert
Sizes: 1/4'', 3/8'', 1/2'', 5/8'', 3/4'', 7/8'',
1'', 1-1/4'', 1-1/2'', 2'', 3''

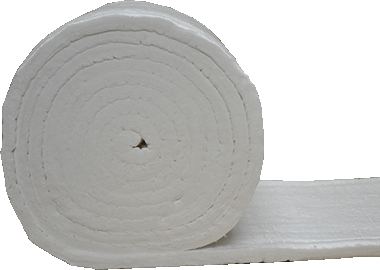

- Ceramic Fiber Blanket:
Densities: 4 lb/ft3, 6 lb/ft3, 8 lb/ft3
Thicknesses: 1/2'', 1'', 2''
Widths: 24'', 48''
Roll lengths: 50', 25', 12.5'

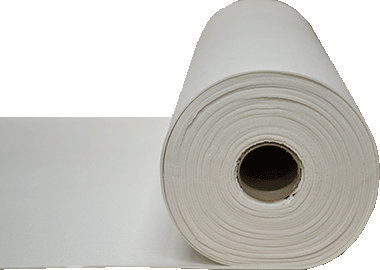

- Ceramic Fiber Paper:
Density: 12 lb/ft3
Thicknesses: 1/32'', 1/16'', 1/8'', 1/4''
Widths: 24'', 48''
Roll lengths: 200', 100', 50'
